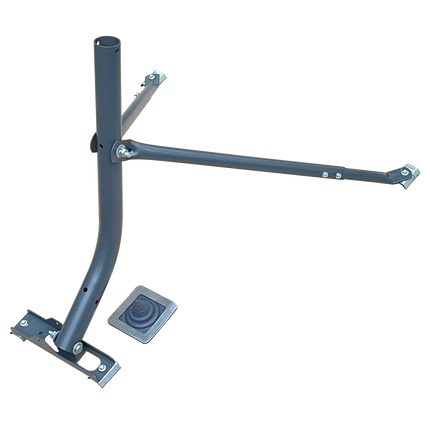

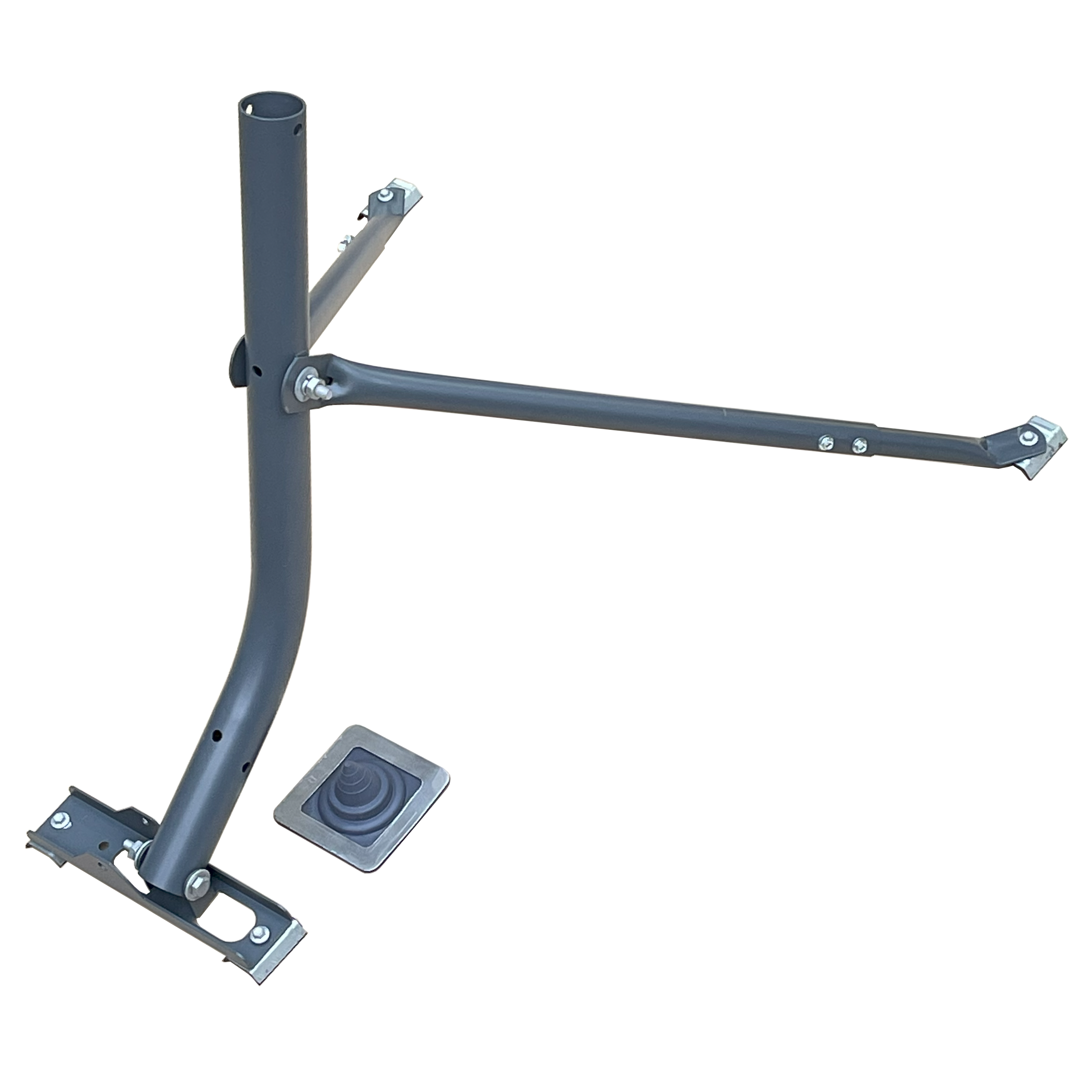

Designed to allow installation of all Starlink dishes – Mini, Gen2, Gen3, HP, and Performance to a roof or wall structure with appropriate 43mm/1.5” pipe mount (purchase separately to suit specific dish).

Can be fixed to sheet metal clad roofing adequate support structure (purlins or girts) and walls/facias with solid construction (brick/blockwork).

Will accommodate Outdoor Wireless Access Points (AP’s) and/or Wireless Bridge (B2B / Point-to-point) Connections and/or IP Security Cameras mounted underneath Starlink dish.

Designed to comply with Australian Standards AS1170.2-2011 & AS4055-2012. Suitable to be mounted in Cyclonic Regions (wind speeds < 238km/hr) with supplied cyclone washers.

Adjustable staybar lengths, clevis orientation and mounting holes allow for wide variety of mounting orientations – either up slope or down slope – from flat to vertical surfaces.

Backstay mounting holes allow for mounting adjacent to roof edge whilst maintaining staybar angles from 60 min to 120 max. degrees ensuring maximum stability and security.

All galvanized steel construction ensures maximum corrosion resistance for coastal installations whilst powder-coated grey finish improves aesthetics for modern appeal.

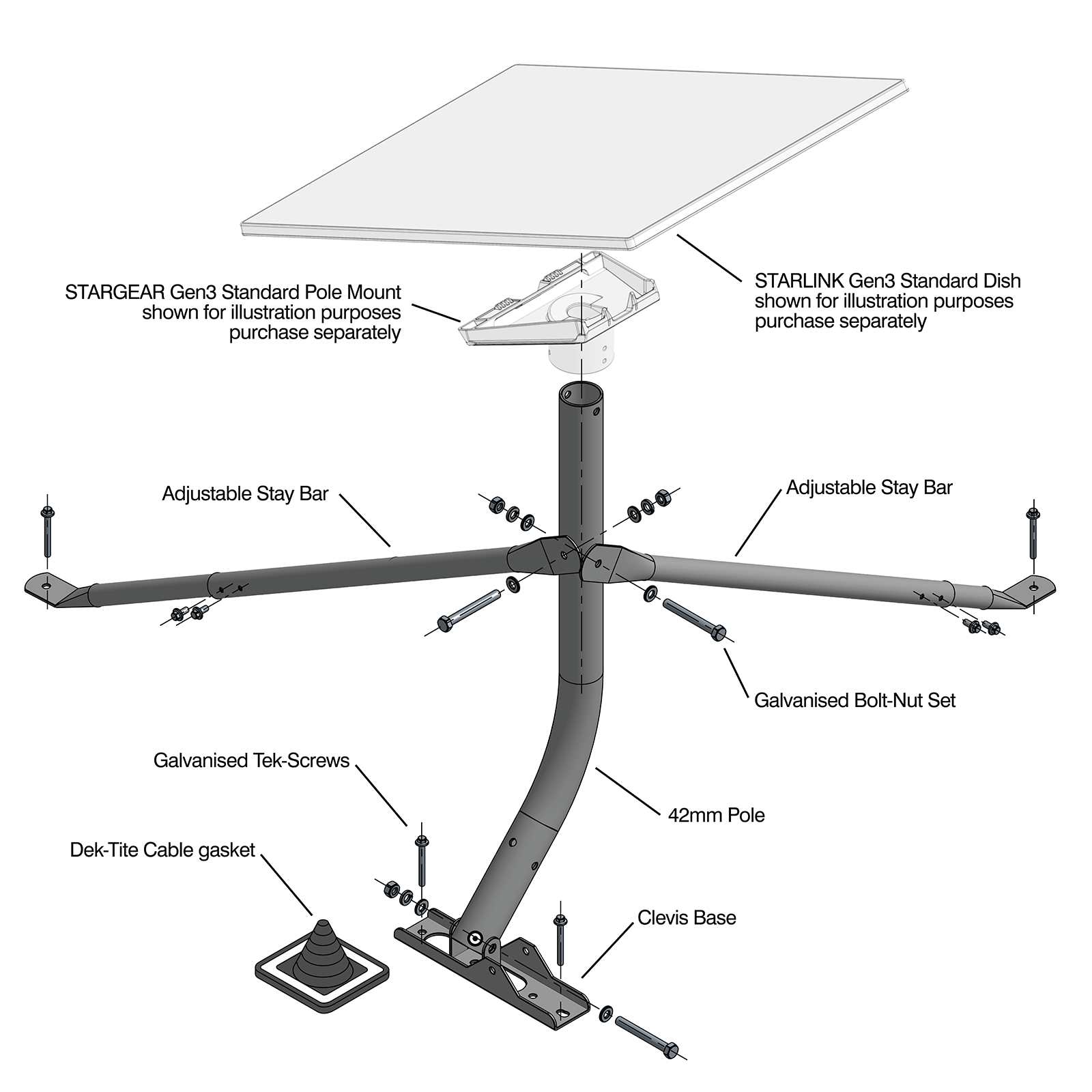

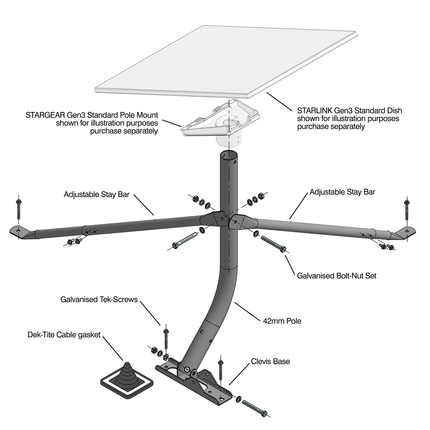

Supplied with all galvanized hardware required for installation including dek-tite style gasket for cable/conduit penetration. Roofing silicone is recommended to be applied to all penetrations.
